Frequency/Pulse Input Batch Controller

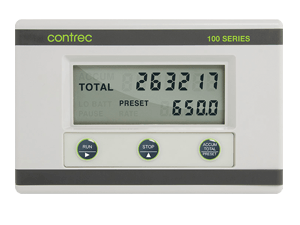

The Model 114D DC Powered Batch Controller/ Batch Counter is designed for flow applications where the precise control of batch quantities is required.

The 114D Batch Counter has an input conditioning circuit which will accept pulse or frequency flow signals generated by turbine, positive displacement, paddlewheel or other flowmeters, Batch Total, Accumulated Total and Preset values can all be displayed on the large LCD display.

Configurable link positions enable the input circuit to be configured for the different signal types.

DC powered with battery backup

The 114D DC Powered Batch Controller will operate from an external power source between 9 and 28 Volts and draws no more than 4mA.

Lithium batteries provide backup if the DC power is interrupted so that totals are not lost. The solenoids or sensors, however, may still require external power.

Solid state outputs provide control to solenoids and relays, and can sink up to 200mA.
