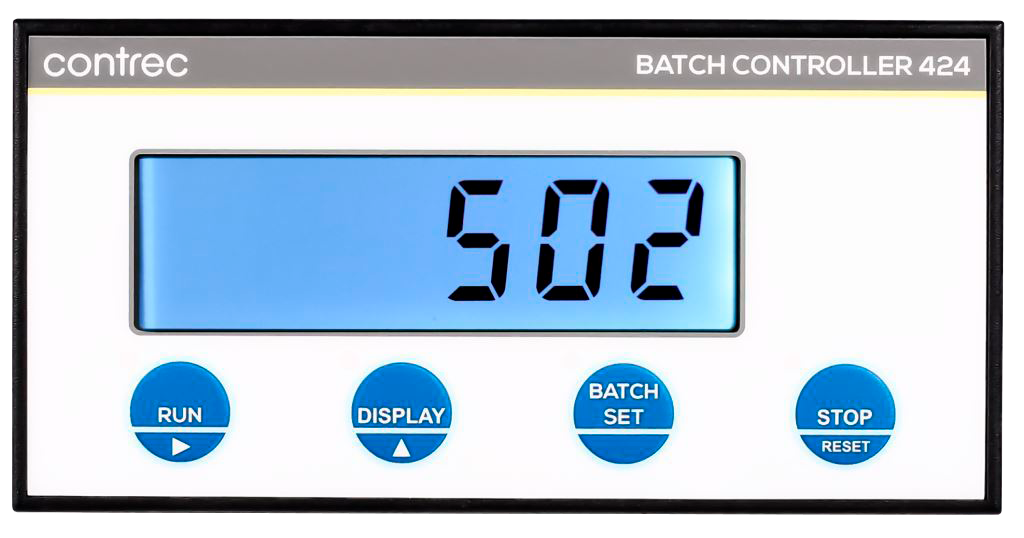

The 424 Batch Controller is suited to flow applications where precise measurement and control of batch quantities is required. Superseding the popular 414 Batch Controller, Batch total, flow rate, accumulated total and preset value can all be displayed in engineering units on the large LCD display.
The 424 Batch Controller will interface to most flowmeters with versions available for pulse outputs.
Automatic Overrun Compensation
Based on previous batches. the 424 will automatically compensate for any overrun which may be caused by slow closing valves.
Batch Limit
A maximum batch quantity can be programmed during set-up, so that the operator cannot enter a batch size that exceeds this limit.
Signal Time-out
If the flow signal cuts out midway through a batch, the output relays are de-energised, and an alarm signaled via an open collector output.
Remote Start/Stop
Remote push-button switches can be connected to the rear terminal strip, to start and stop batches.
Auto Restart
The 424 Batch Controller can be programmed to automatically restart the batch after a preset time delay.
Count Up/Down
The instrument can be programmed to count up from zero, or to count down from the batch quantity.
End of Batch
An end of batch signal is provided via an open collector transistor output.
Features
Dual relay outputs
Overrun compensation
Remote operation
No flow alarm
Custom headers for ticket printing
Displays batch total, preset quantity, flow rate and accumulated total
RS485 & RS232 output
Adjustable backlight
Software control of flow input type and output voltage
Universal mains input voltage
Optional 4-20mA output Typical plant diagram
